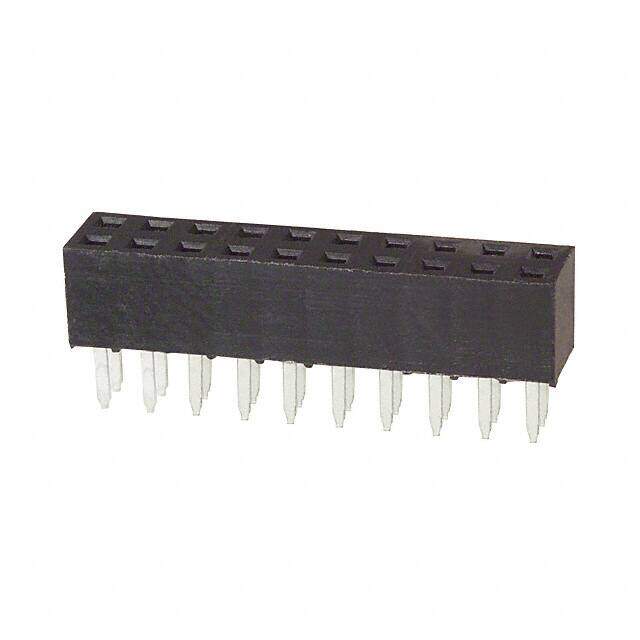

2064-20-01-P2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 2MM VRT DUAL ROW 20POS
PDF
/
Inventory: 2102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Width 4mm
Length 20.1mm
Height 4.5mm
Technical
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 10
Lead Pitch 2mm
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Insulation Height 0.177 4.50mm
Pitch 2.0066mm
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Female
Number of Rows 2
Color Black
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 2064
Published 2002
Packaging Bulk
Physical
Housing Material Plastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
