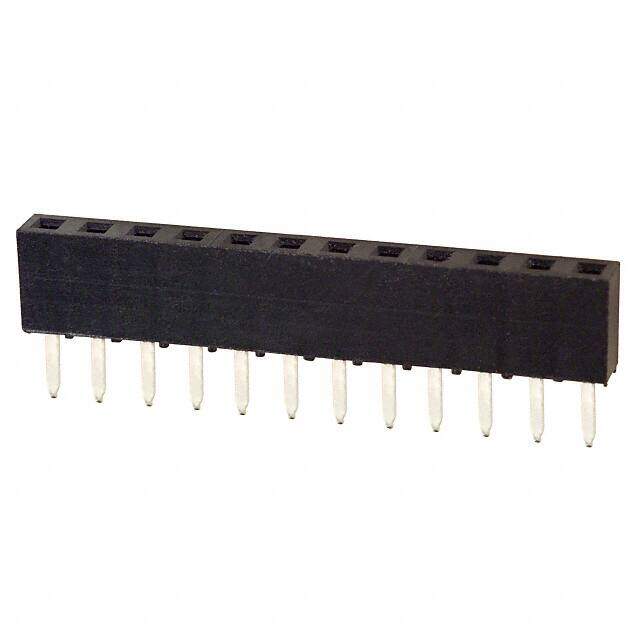

2063-12-01-P2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 2MM VERT SGL ROW 12POS
PDF
/
Inventory: 8685
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Housing Material Plastic
Technical
Packaging Bulk
Published 2002
Series 2063
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 12
Color Black
Number of Rows 1
Gender Female
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Pitch 2.0066mm
Insulation Height 0.177 4.50mm
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Lead Pitch 2mm
Number of Contacts 12
Contact Finish - Post Tin-Lead
Housing Color Black
Dimensions
Height 4.5mm
Length 24.1mm
Width 2.2mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
