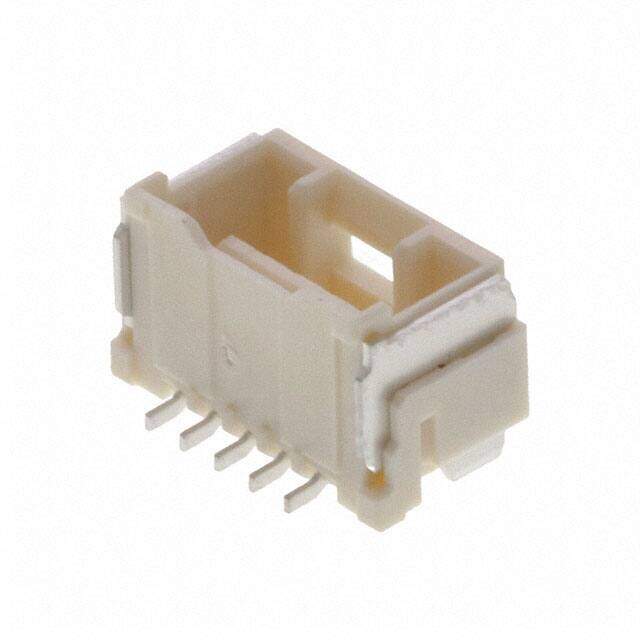

5054050570
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 5POS 0.059 GOLD SMD
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.282972
≥1 USD $0.282972
≥10 USD $0.266957
≥100 USD $0.251846
≥500 USD $0.237587
≥1000 USD $0.224142
Inventory: 8614
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Insulation Material Resin
Mounting Option 1 LOCKING
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2015
Series CLIK-Mate 505405
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Voltage - Rated 100V
Fastening Type Latch Holder
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 5
Insulation Height 0.285 7.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.059 1.50mm
Insulation Color Beige
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender FEMALE
Body Depth 0.287 inch
Contact Resistance 20mOhm
Dimensions
Plating Thickness 7.87μin
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
