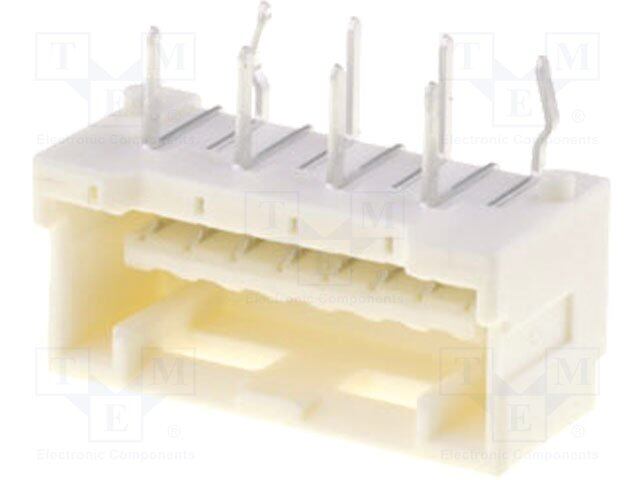

5031750800
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 1.5 W/B SGL DIPR/ARe Assy8CktW/BossBeige
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.898691
≥1 USD $0.898691
≥10 USD $0.847821
≥100 USD $0.799831
≥500 USD $0.754559
≥1000 USD $0.711844
Inventory: 7556
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Plating Thickness 39μin
Technical
Glow Wire Compliant Non-compliant
Durability 30 Cycles
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.059 inch
Insulation Resistance 500000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 2A
Lead Length 3.4mm
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.274 inch
PCB Contact Pattern STAGGERED
Number of Contacts 8
Number Of PCB Rows 2
Contact Length - Post 0.134 3.40mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Beige
Pitch - Mating 0.059 1.50mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.274 6.95mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Voltage - Rated 100V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Connector Type Receptacle
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series CLIK-Mate 503175
Published 2010
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide
Insulation Material Polyamide (PA), Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
