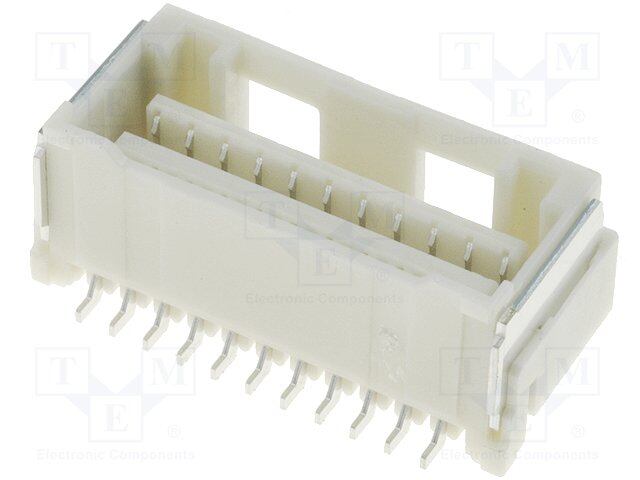

5031542290
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
15WB DUAL EMBOSSED TAPE PACKAGE
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
≥10 USD $2.13048
≥100 USD $1.694792
Inventory: 4457
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Resin
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2011
Series CLIK-Mate 503154
Feature Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Forked
Total Number of Contacts 22
Orientation Vertical
Terminal Pitch 1.4986mm
Insulation Height 0.344 8.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.059 1.50mm
Insulation Color Beige
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.819 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Contact Gender FEMALE
Body Depth 0.346 inch
Insulation Resistance 500000000Ohm
Mating Contact Pitch 0.059 inch
Number of Circuits 22
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
