5025851370
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

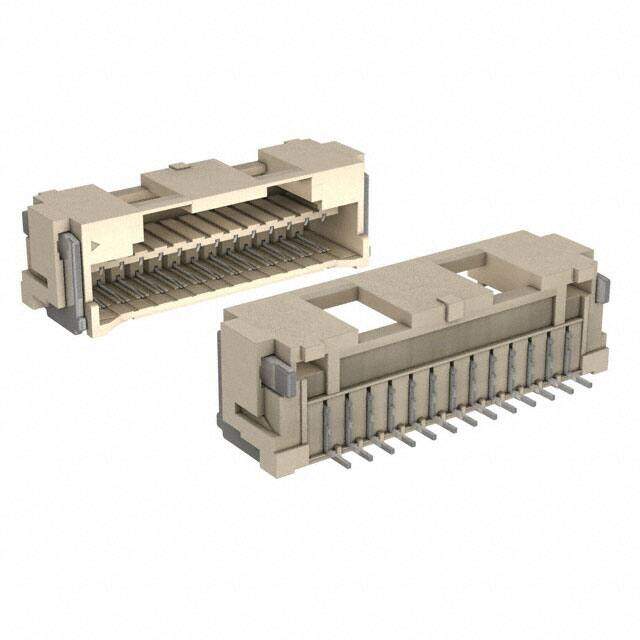

Headers & Wire Housings CLIKMATE PCB RECPT 13P R/A TIN BEIGE
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188711
≥1 USD $1.188711
≥10 USD $1.121421
≥100 USD $1.057947
≥500 USD $0.998068
≥1000 USD $0.941575
Inventory: 3292
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Insulation Material Resin
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2009
Series CLIK-Mate 502585
Feature Pick and Place, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Voltage - Rated 100V
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Orientation Right Angle
Insulation Height 0.250 6.35mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.059 1.50mm
Insulation Color Beige
Number of Contacts 13
Contact Gender Female
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
