5025841170
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

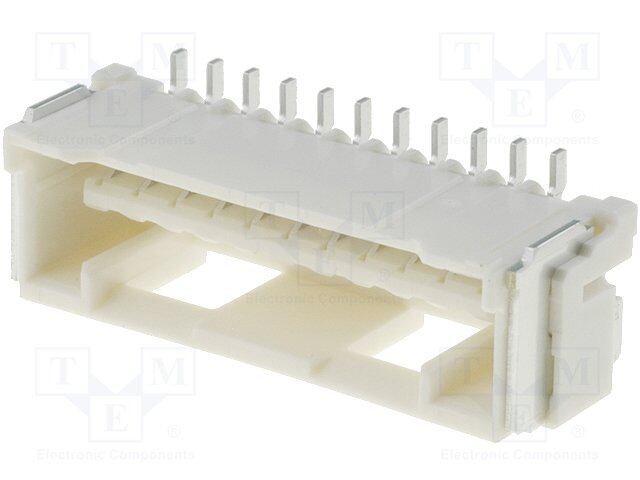

1.50mm Pitch CLIK-Mate? Wire-to-Board PCB Receptacle, Single Row, Vertical, 11 Circuits
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $1.05952
≥100 USD $0.88308
Inventory: 5303
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Plating Thickness 39μin
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.059 inch
Insulation Resistance 500000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 2A
Body Depth 0.285 inch
UL Flammability Code 94V-0
Contact Gender FEMALE
Body Breadth 0.25 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Beige
Pitch - Mating 0.059 1.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.285 7.25mm
Total Number of Contacts 11
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Additional Feature ROHS COMPLIANT, TAPE AND REEL
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Positions 11
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place, Solder Retention
Series CLIK-Mate 502584
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Mounting Option 1 LOCKING
Insulation Material Resin
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
