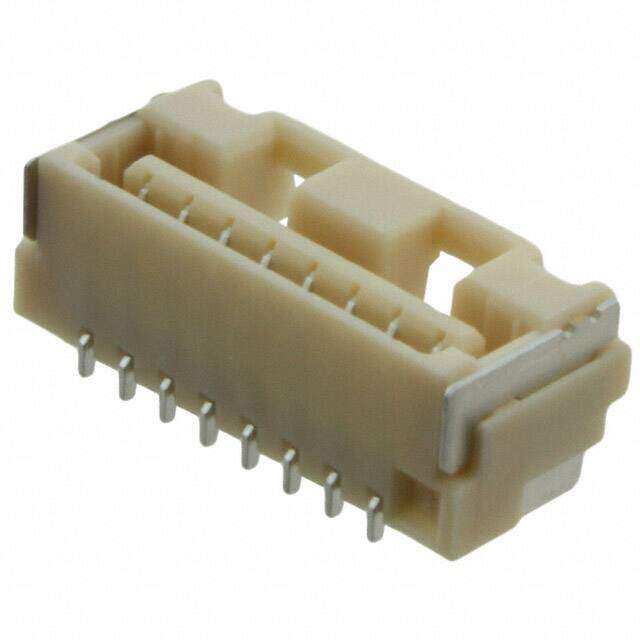

5023860870
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 8POS 0.049 TIN SMD R/A
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.6072
≥100 USD $0.505736
Inventory: 2474
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount, Right Angle
Insulation Material Resin
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series CLIK-Mate 502386
JESD-609 Code e3
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Voltage - Rated 50V
Additional Feature CLIK-MATE, POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Current Rating (Amps) 1A
Total Number of Contacts 8
Insulation Height 0.215 5.45mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Contact Gender FEMALE
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
