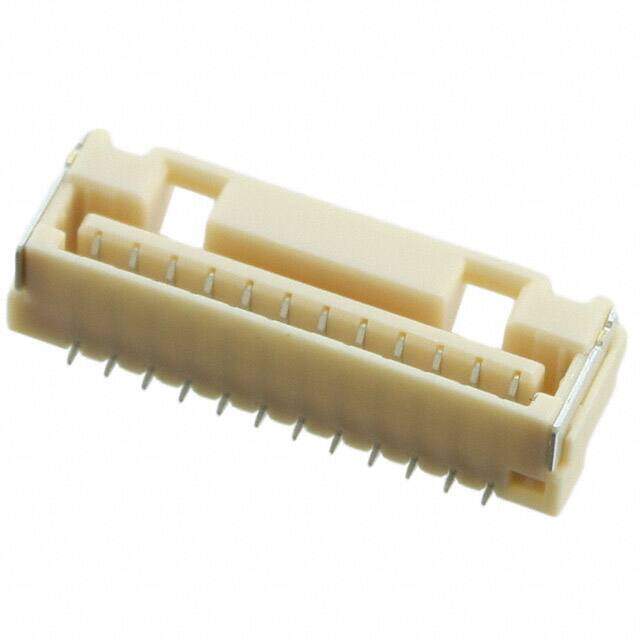

5023821272
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN 1.25 W/B ST RCPT 12CKT
PDF
/
Inventory: 7116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Plating Thickness 39μin
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.049 inch
Contact Resistance 20mOhm
UL Flammability Code 94V-0
Contact Gender FEMALE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.173 4.40mm
Total Number of Contacts 12
Current Rating (Amps) 1A
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Voltage - Rated 50V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place, Solder Retention
Series CLIK-Mate 502382
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Mounting Option 1 LOCKING
Insulation Material Resin
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 20 Weeks
