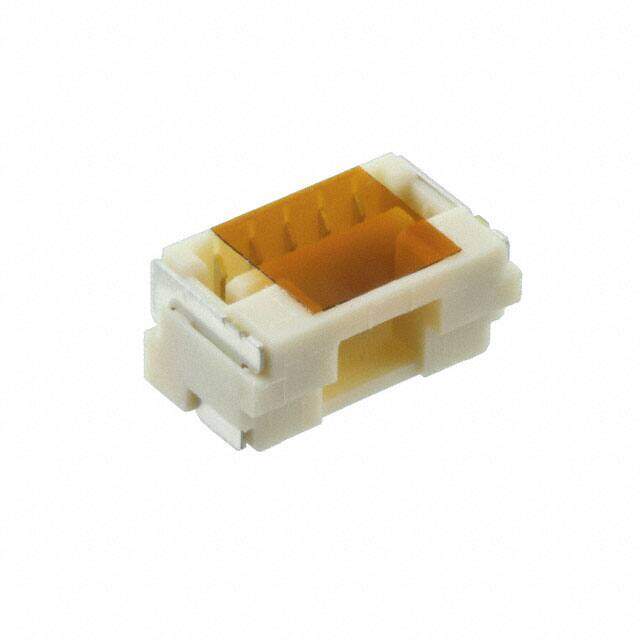

5023820572
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN 1.25 W/B ST RCPT 5CKT
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.04632
≥100 USD $0.864248
Inventory: 16105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Insulation Material Resin
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2015
Series CLIK-Mate 502382
Feature Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Voltage - Rated 50V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 1A
Insulation Height 0.173 4.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
