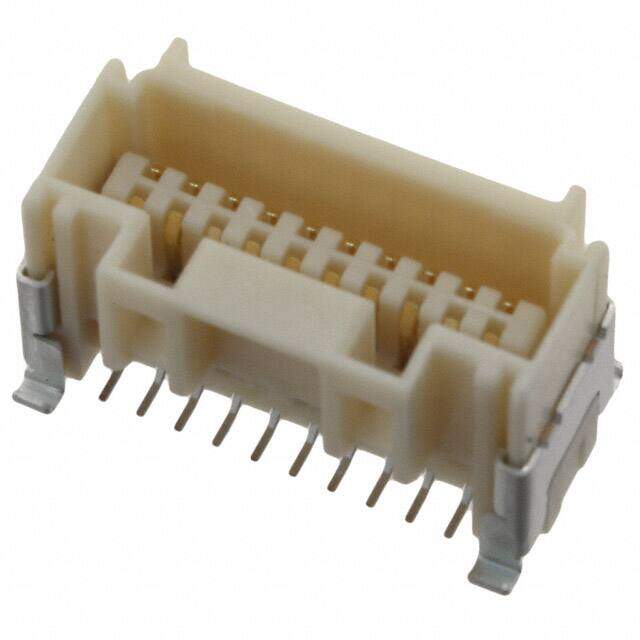

5019312070
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 20POS 0.049 GOLD SMD
PDF
/
Buying Options
Total Price: USD $2.74
Unit Price: USD $2.73829
≥1 USD $2.73829
≥10 USD $2.583296
≥100 USD $2.437068
≥500 USD $2.299128
≥1000 USD $2.168984
Inventory: 10900
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 3.90μin 0.099μm
Plating Thickness 3.93μin
Length 16.55mm
Technical
Glow Wire Compliant Non-compliant
Max Voltage Rating (DC) 5.05kV
Max Voltage Rating (AC) 50V
Mating Contact Pitch 0.049 inch
Insulation Resistance 100000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Housing Color Natural
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.346 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number of Contacts 20
Number Of PCB Rows 2
Reliability COMMERCIAL
Voltage - Rated AC 50V
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.049 1.25mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.346 8.80mm
Depth 8.85mm
Orientation Vertical
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Number of Rows 2
Applications General Purpose
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place, Solder Retention
JESD-609 Code e3
Series Duo-Clasp 501931
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Housing Material Polyamide
Insulation Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
