0901471115
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

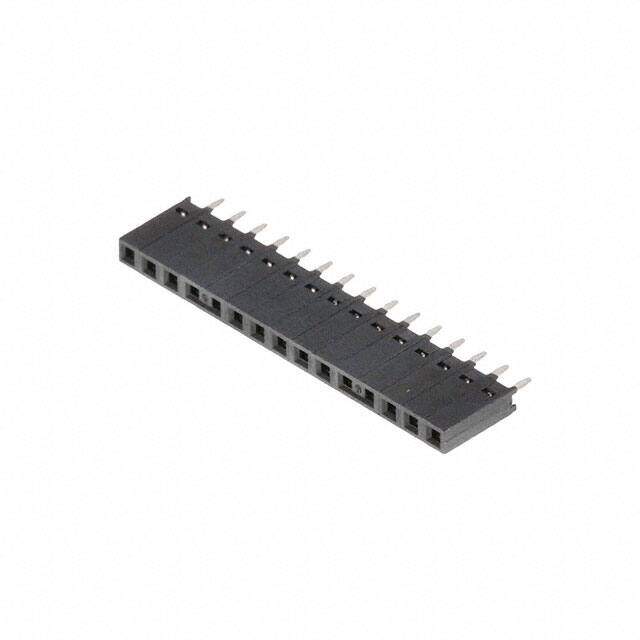

Conn Socket Strip F 15 POS 2.54mm Solder ST Thru-Hole C-Grid? Tube
PDF
/
Buying Options
Total Price: USD $2.85
Unit Price: USD $2.8512
≥1 USD $2.8512
≥10 USD $2.509258
≥100 USD $1.996183
≥500 USD $1.653995
≥1000 USD $1.482888
Inventory: 62
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 40.0μin 1.02μm
Contact Finish Thickness - Mating 40.0μin 1.02μm
Length 38.1mm
Technical
Number of Circuits 14
Housing Color Black
Contact Length - Post 0.114 2.90mm
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Depth 2.54mm
Orientation Vertical
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 350V
Number of Rows 1
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 15
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid 90147
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 15 Weeks
