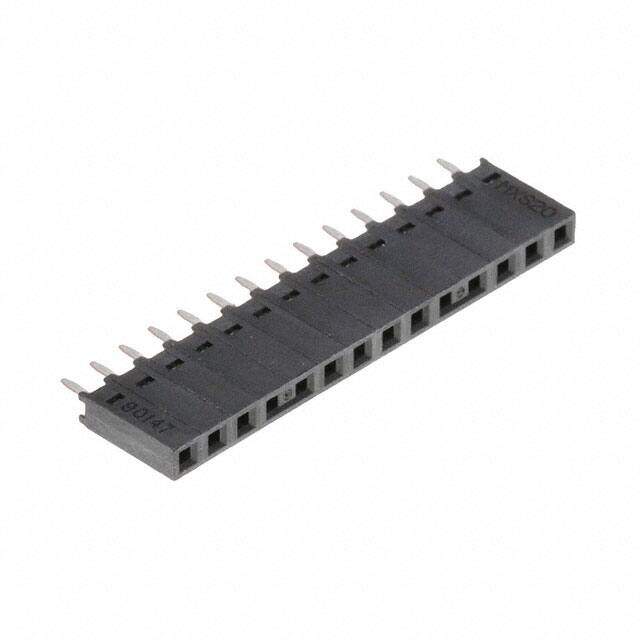

0901471114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip F 14 POS 2.54mm Solder ST Thru-Hole C-Grid? Tube
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $4.14568
≥100 USD $3.297448
≥500 USD $2.732171
Inventory: 154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 40.0μin 1.02μm
Contact Finish Thickness - Mating 40.0μin 1.02μm
Technical
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 350V
Number of Rows 1
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 14
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid 90147
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
