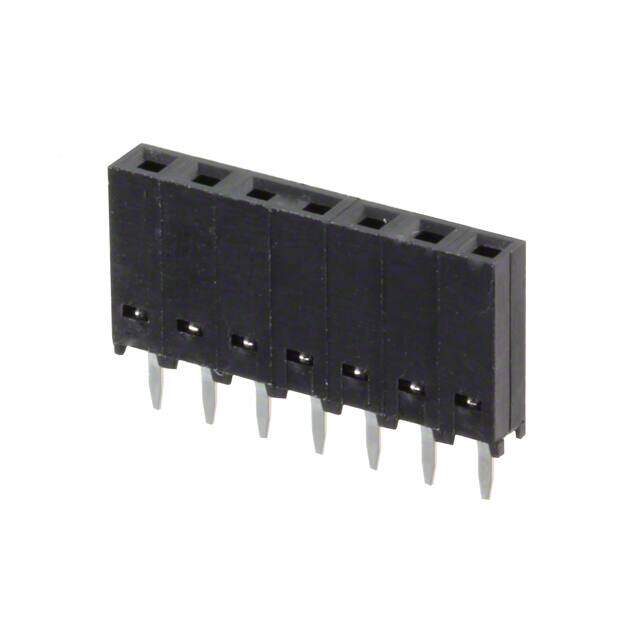

0901471107 image
Favorite
0901471107 image
Favorite

0901471107

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip F 7 POS 2.54mm Solder ST Thru-Hole C-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4344
≥1 USD $1.4344
≥10 USD $1.21968
≥100 USD $1.0076
≥500 USD $0.93368
Inventory: 5354
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness - Post 40.0μin 1.02μm
Contact Finish Thickness - Mating 40.0μin 1.02μm

Technical

Contact Finish - Post Tin
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 350V
Number of Rows 1
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 7
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C-Grid 90147
Packaging Tube
Operating Temperature -55°C~105°C

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 15 Weeks
