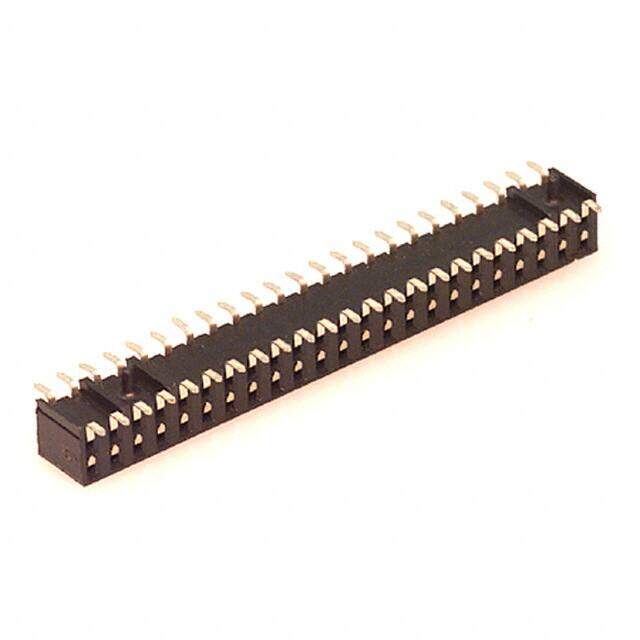

0873684624
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 46 POS 2mm Solder RA SMD Milli-Grid? Tube
PDF
/
Inventory: 6699
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material NOT SPECIFIED
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Series Milli-Grid 87368
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 46
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 125VAC
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 1A
Total Number of Contacts 46
Insulation Height 0.193 4.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
RoHS Status ROHS3 Compliant
