0873682424
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

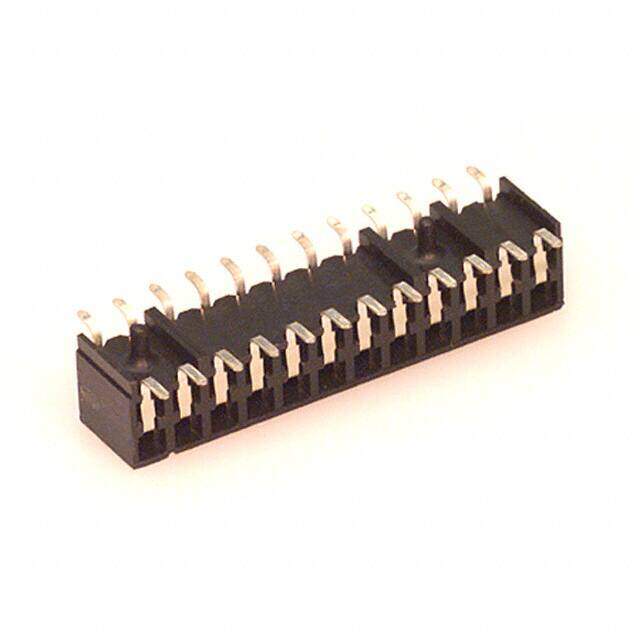

Conn Socket Strip RCP 24 POS 2mm Solder RA SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.0808
≥1 USD $6.0808
≥10 USD $5.3196
≥100 USD $4.306192
≥500 USD $3.546312
Inventory: 297
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.193 4.90mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 125VAC
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 24
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Milli-Grid 87368
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
