0873682024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

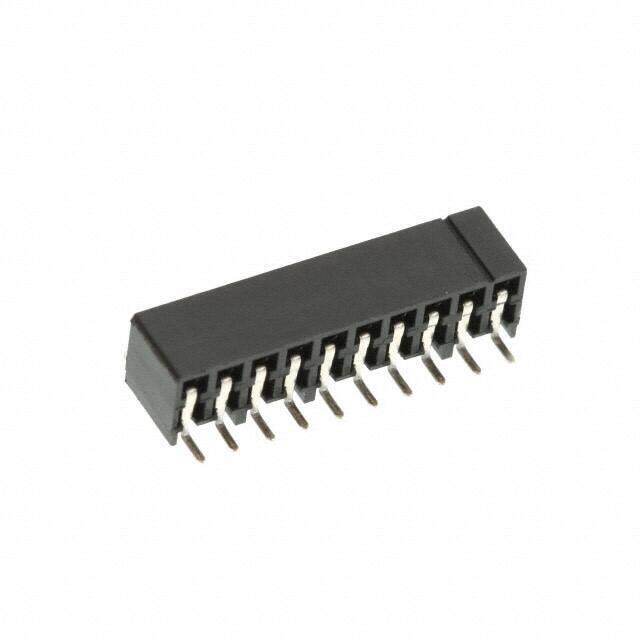

Conn Socket Strip RCP 20 POS 2mm Solder RA SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.711695
≥1 USD $4.711695
≥10 USD $4.444996
≥100 USD $4.193393
≥500 USD $3.956026
≥1000 USD $3.73211
Inventory: 6942
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material NOT SPECIFIED
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Series Milli-Grid 87368
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 20
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 125VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.193 4.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
RoHS Status ROHS3 Compliant
