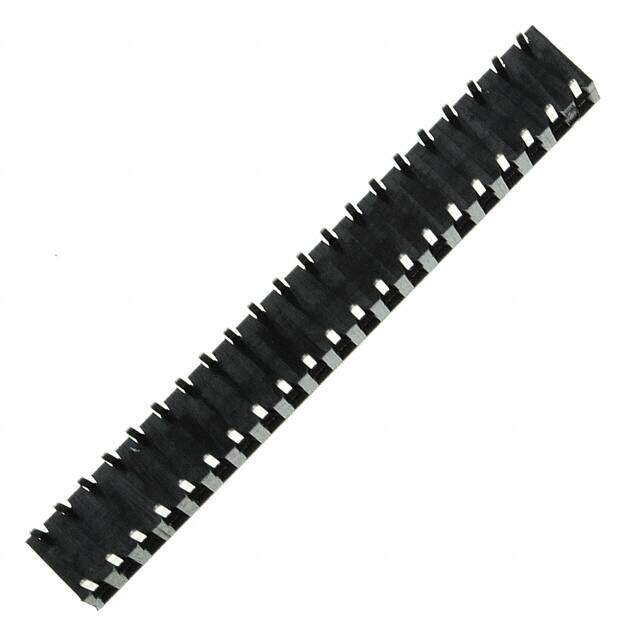

0872644252
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 42 POS 2mm Solder RA Thru-Hole Milli-Grid? Tube
PDF
/
Inventory: 7581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole, Right Angle
Contact Shape Square
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Series Milli-Grid 87264
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 42
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 125VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.100 2.54mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
RoHS Status ROHS3 Compliant
