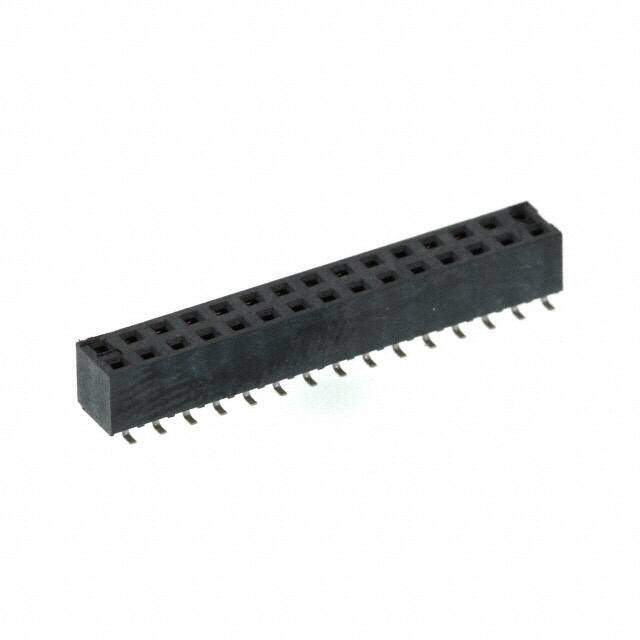

0791091014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 30POS 0.079 GOLD SMD
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.224
≥1 USD $4.224
≥10 USD $3.7136
≥100 USD $2.954037
≥500 USD $2.447614
Inventory: 1491
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.175 4.45mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 125V
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 30
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Milli-Grid 79109
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
