0791091011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

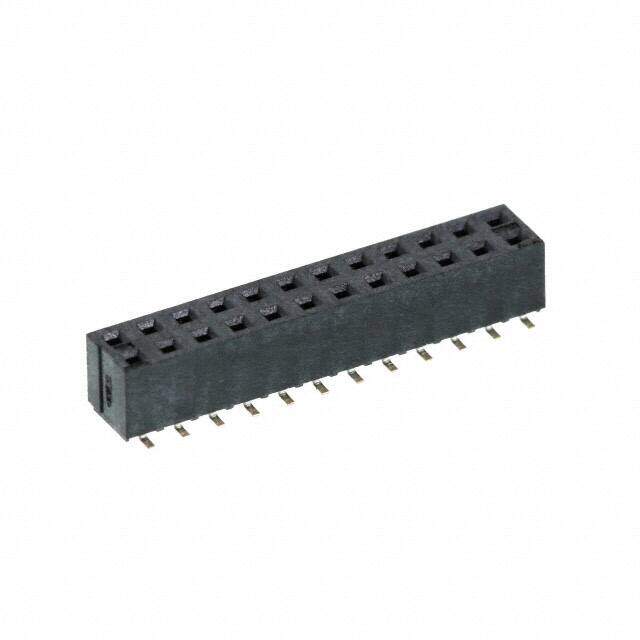

Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.3044
≥100 USD $2.628639
≥500 USD $2.178009
Inventory: 2584
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Milli-Grid 79109
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 24
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 125V
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Total Number of Contacts 24
Insulation Height 0.175 4.45mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
Contact Resistance 15mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V
Durability 50 Cycles
Dimensions
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
