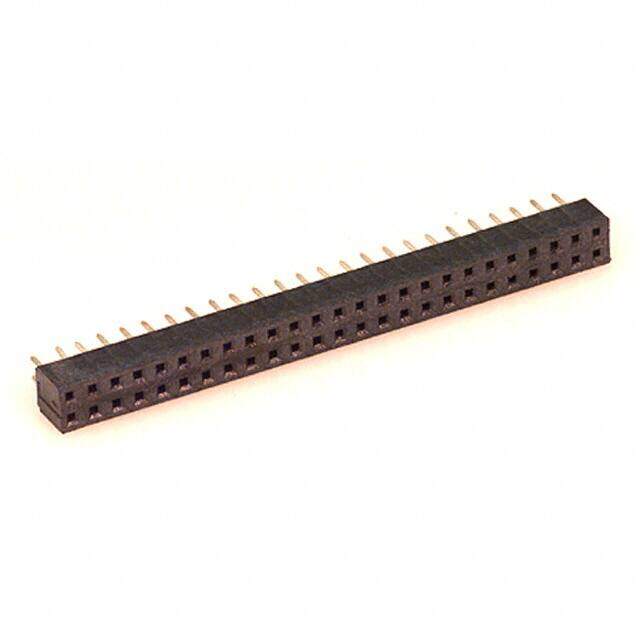

0791070024
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 50POS 0.079 GOLD PCB
PDF
/
Inventory: 6388
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Finish - Post Tin-Lead
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.175 4.45mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 125V
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 50
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Milli-Grid 79107
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
