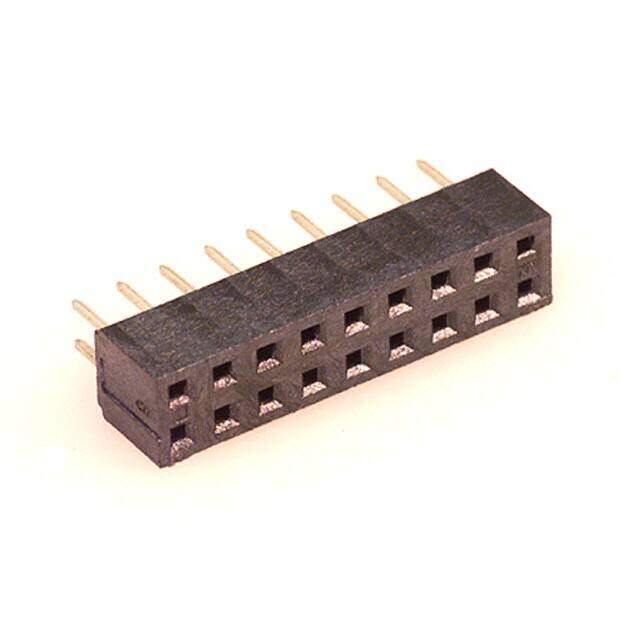

0791070008
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 18POS 0.079 GOLD PCB
PDF
/
Inventory: 5860
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Milli-Grid 79107
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 18
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 125V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.175 4.45mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Contact Finish - Post Tin-Lead
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
RoHS Status Non-RoHS Compliant
