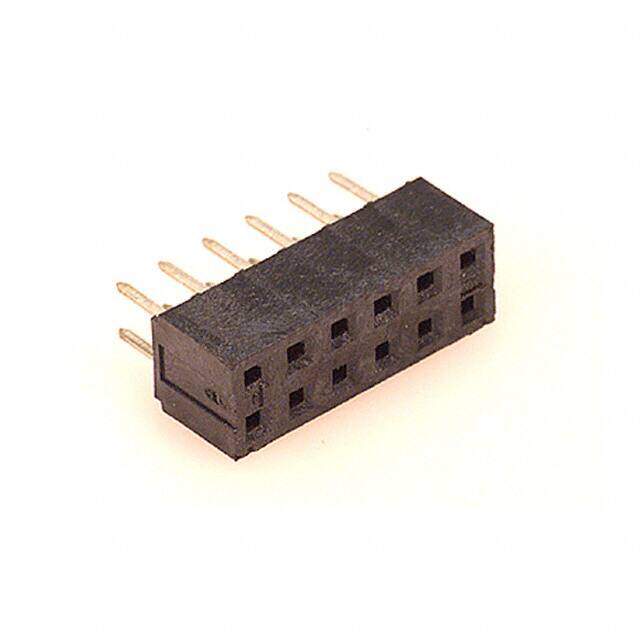

0791070005
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS 0.079 GOLD PCB
PDF
/
Inventory: 7040
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Voltage - Rated 125V
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 1A
Insulation Height 0.175 4.45mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Contact Finish - Post Tin-Lead
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series Milli-Grid 79107
Packaging Tube
Operating Temperature -55°C~125°C
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
RoHS Status Non-RoHS Compliant
Physical
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
