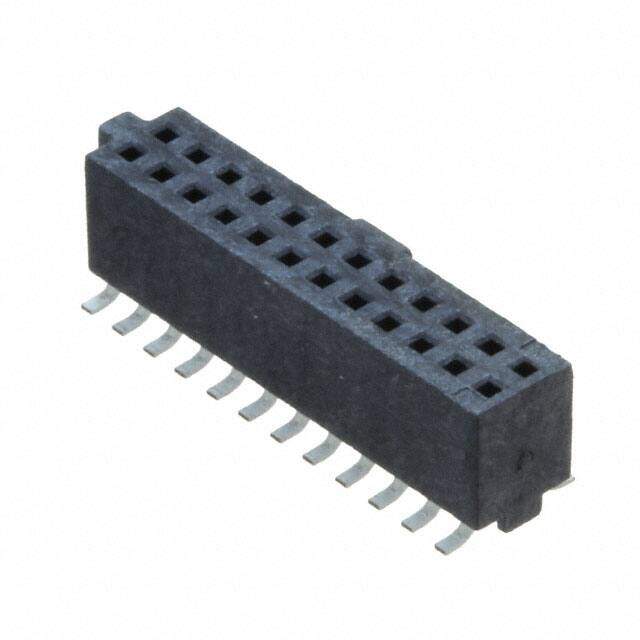

0781202407 image
Favorite
0781202407 image
Favorite

0781202407

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description SLIM-GRID RECEPTACLE, 24 CIRCUIT
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9888
≥1 USD $1.9888
≥10 USD $1.691527
≥100 USD $1.397273
≥500 USD $1.103098
≥1000 USD $0.978076
Inventory: 1959
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 1.97μin 0.050μm

Technical

Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.178 4.51mm
Current Rating (Amps) 4.3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 125VAC
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 24
Connector Type Receptacle
Termination Solder
Part Status Active
Pbfree Code yes
Series Slim-Grid 78120
Packaging Tube
Operating Temperature -55°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Contact Shape Square
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
