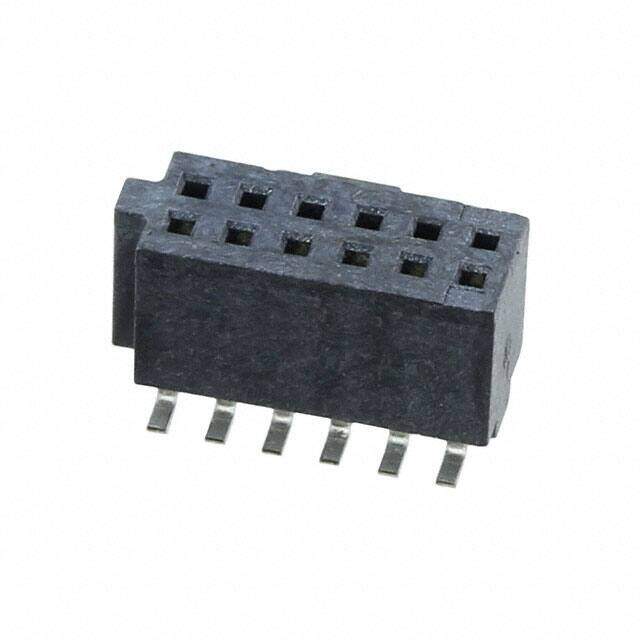

0781201217
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS 0.05 GOLD SMD
PDF
/
Inventory: 5995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 1.97μin 0.050μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.178 4.51mm
Current Rating (Amps) 4.3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 125VAC
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 12
Connector Type Receptacle
Termination Solder
Part Status Active
Pbfree Code yes
Feature Pick and Place
Series Slim-Grid 78120
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Contact Shape Square
Mounting Type Surface Mount
Contact Material Copper Alloy
