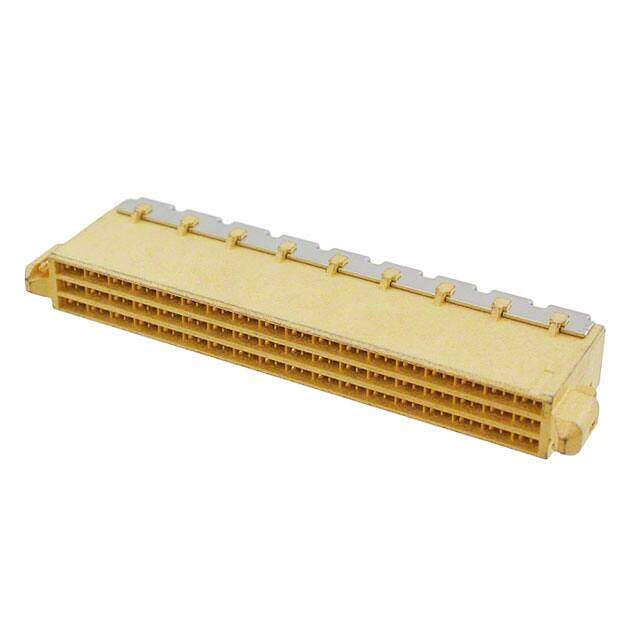

0750190013
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 108POS GOLD PCB R/A
PDF
/
Inventory: 8702
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Number of Circuits 108
Contact Finish - Post Tin
Number of Contacts 108
Contact Length - Post 0.111 2.82mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.393 9.98mm
Orientation Right Angle
Pitch 3.96mm
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 12V
Number of Rows 3
Applications General Purpose, Industrial, Military, Telecommunications
Min Operating Temperature -20°C
Max Operating Temperature 85°C
Number of Positions 108
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide
Series Plateau HS Dock 75019
Packaging Tray
Operating Temperature -20°C~85°C
Physical
Housing Material Thermoplastic
Insulation Material Liquid Crystal Polymer (LCP), Halogen Free
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
