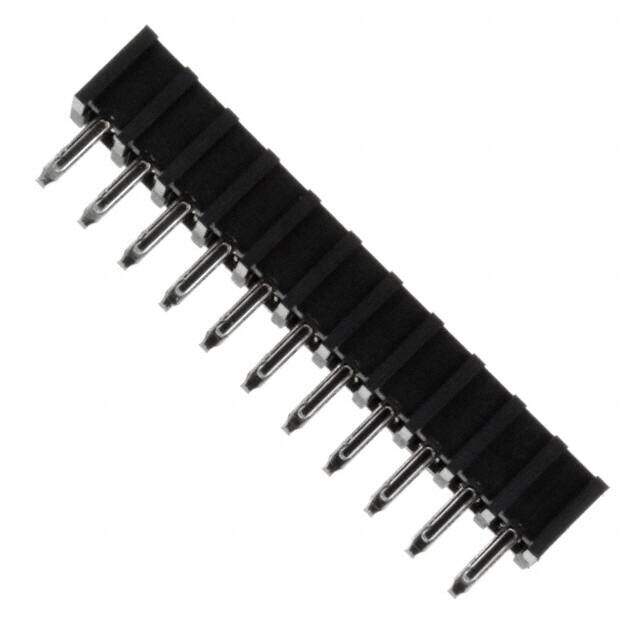

0448120011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 11 POS 2.54mm Solder ST Thru-Hole KK? Tray
PDF
/
Inventory: 9711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series KK 44812
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 11
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 250VAC 176VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Female Socket
Insulation Height 0.177 4.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.136 3.46mm
Dimensions
Contact Finish Thickness - Mating 200.0μin 5.08μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
