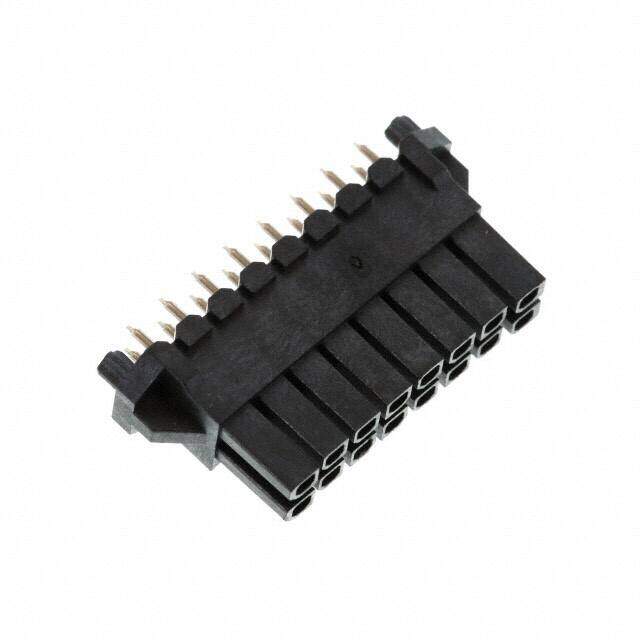

0447691602
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Wire to Board RCP 16 POS 3mm Solder ST Thru-Hole Micro-Fit 3.0 BMI? Tray
PDF
/
Buying Options
Total Price: USD $5.16
Unit Price: USD $5.1568
≥1 USD $5.1568
≥10 USD $4.48624
≥100 USD $3.949
Inventory: 5319
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 16.86mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
UL Flammability Code 94V-0
Contact Finish - Post Tin
Contact Length - Post 0.134 3.40mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.535 13.60mm
Terminal Pitch 3mm
Current Rating (Amps) 5A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 2
Applications General Purpose, Telecommunications
Number of Positions 16
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Micro-Fit 3.0 BMI 44769
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
