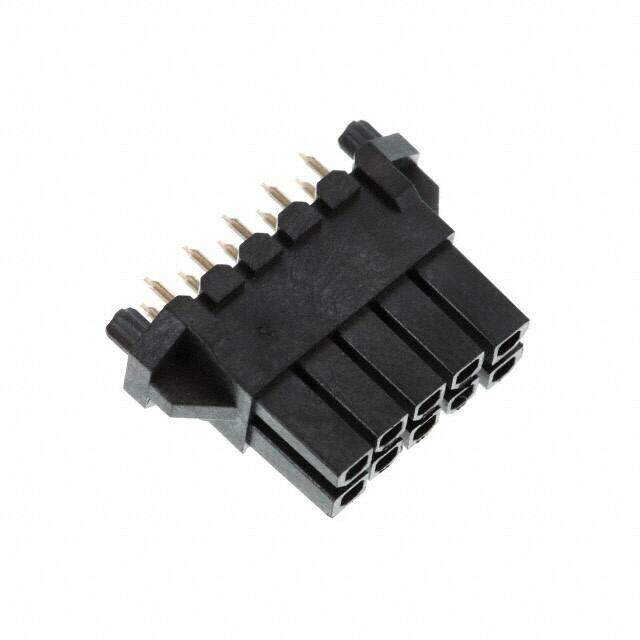

0447691002 image
Favorite
0447691002 image
Favorite

0447691002

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Micro-Fit 3.0 BMI? Tray
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.8368
≥1 USD $3.8368
≥10 USD $3.35896
≥100 USD $2.816
Inventory: 18162
Minimum: 1
-
+

Technical Details

Technical

MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 5A
Terminal Pitch 3mm
Insulation Height 0.535 13.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.134 3.40mm
Contact Finish - Post Tin
UL Flammability Code 94V-0
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 250VAC
Number of Rows 2
Applications General Purpose, Telecommunications
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Micro-Fit 3.0 BMI 44769
Packaging Tray
Operating Temperature -40°C~105°C

Dimensions

Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Stack Height (Mating) 16.86mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Physical

Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 11 Weeks
