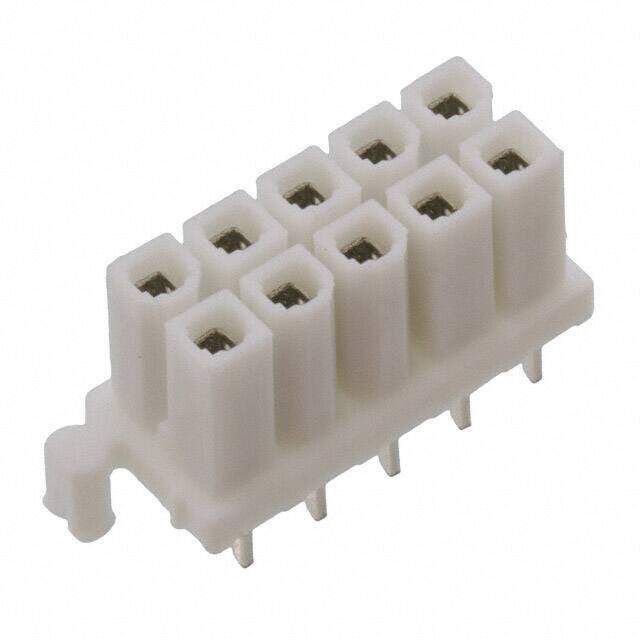

0444751021

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 10POS 0.165 TIN PCB
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.476
≥1 USD $3.476
≥10 USD $3.05536
≥100 USD $2.430454
≥500 USD $2.013818
Inventory: 5708
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 10.9mm 15.24mm 15.82mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Number of Ports 1
Empty Shell NO
UL Flammability Code 94V-0
Number of Contacts 10
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Current Rating 10A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.446 11.33mm
Depth 9.6mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.30
Voltage - Rated 600VAC
Number of Rows 2
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series Mini-Fit HCS 44475
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 6 Weeks
