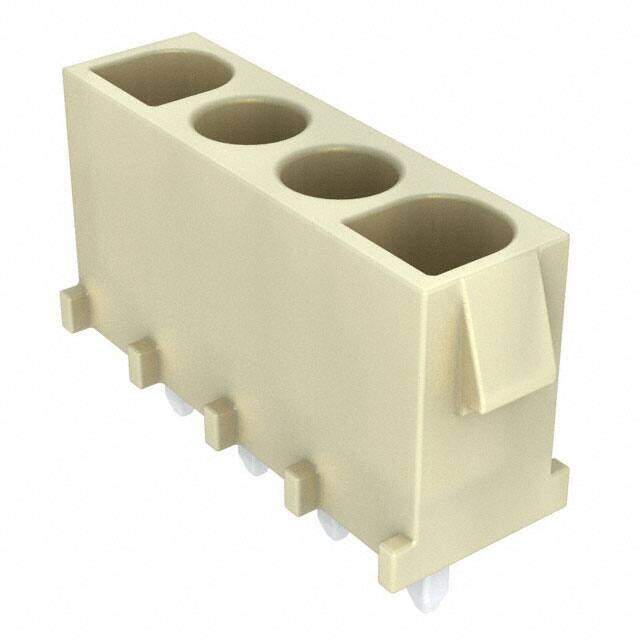

0367570143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
MLX 4CKT ASSY WITH SOCKET TERM G
PDF
/
Inventory: 4272
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA6), Nylon 6
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series MLX 36757
Feature Glow Wire Compliant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Telecommunications
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Female Socket
Insulation Height 0.550 13.97mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.250 6.35mm
Insulation Color Natural
Contact Length - Post 0.169 4.30mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 137.8μin 3.50μm
Contact Finish Thickness - Post 137.8μin 3.50μm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
