0022142074

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets

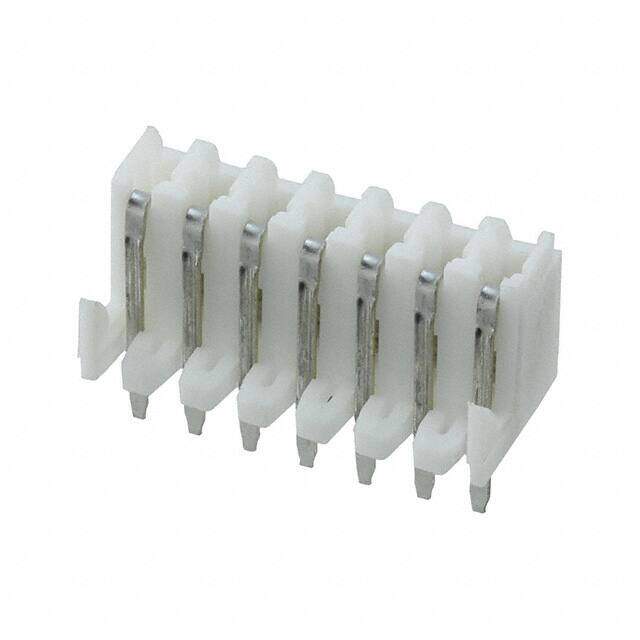

Description CONN RCPT 7POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.8536
≥100 USD $0.71104
≥500 USD $0.568832
≥1000 USD $0.497728
≥3000 USD $0.472842
Inventory: 1156
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Contact Length - Post 0.132 3.35mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.311 7.90mm
Current Rating (Amps) 2.5A
Contact Type Non-Gendered
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 7
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Hooks
Series KK 4455
Packaging Tray
Operating Temperature -40°C~80°C

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 16 Weeks
