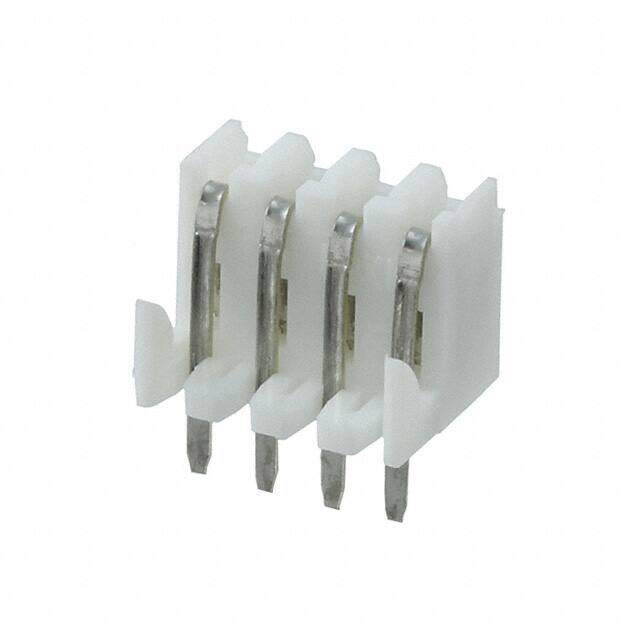

0022142044
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.57112
≥100 USD $0.44418
≥500 USD $0.349026
≥1000 USD $0.306724
≥3000 USD $0.285569
Inventory: 795
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Length - Post 0.132 3.35mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.311 7.90mm
Current Rating (Amps) 2.5A
Contact Type Non-Gendered
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Hooks
Series KK 4455
Packaging Bag
Operating Temperature -40°C~80°C
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
