0022022075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

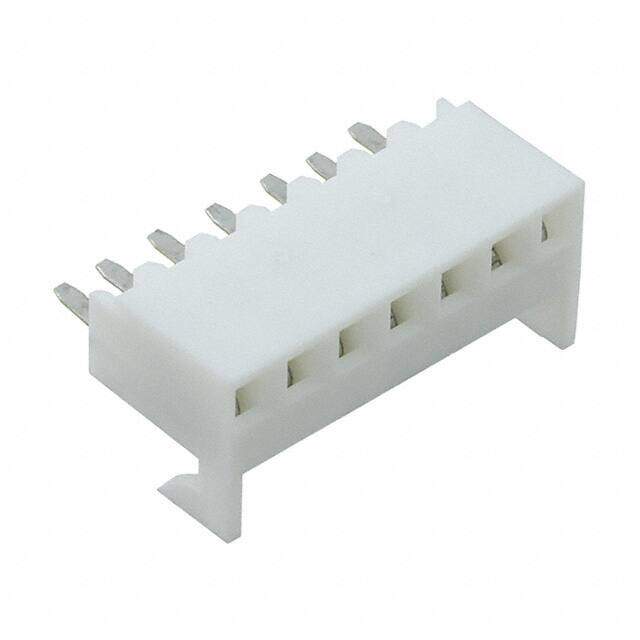

CONN RECEPT 7POS .100 VERT PCB
PDF
/
Inventory: 7023
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Length - Post 0.132 3.35mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.311 7.90mm
Current Rating (Amps) 2.5A
Contact Type Non-Gendered
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 7
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Hooks
Series KK 4455
Packaging Tray
Operating Temperature -40°C~80°C
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 15 Weeks
