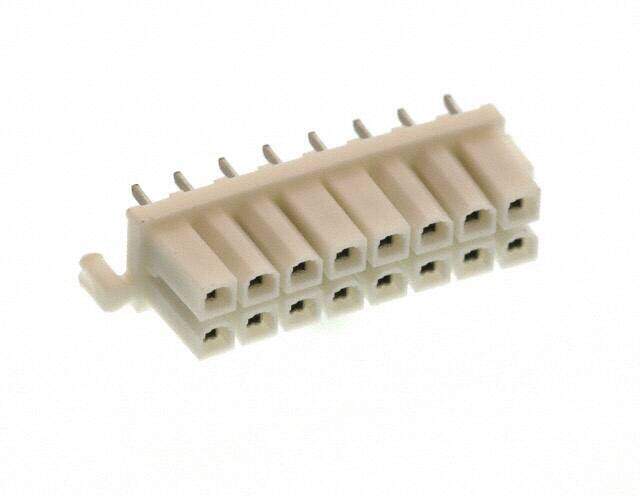

0015247161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 16POS 0.165 TIN PCB
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9776
≥1 USD $3.9776
≥10 USD $3.49976
≥100 USD $2.784214
≥500 USD $2.306876
Inventory: 3293
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series Mini-Fit BMI 42385
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 16
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Voltage - Rated 600V
Additional Feature POLARIZED
HTS Code 8536.69.40.30
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Insulation Height 0.446 11.33mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
