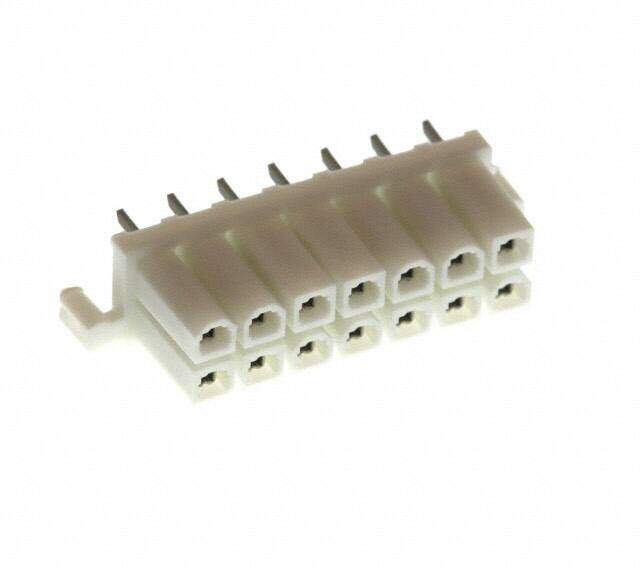

0015247141
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 14POS 0.165 TIN PCB
PDF
/
Buying Options
Total Price: USD $2.62
Unit Price: USD $2.6224
≥1 USD $2.6224
≥10 USD $2.30912
≥100 USD $1.848
Inventory: 12169
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.446 11.33mm
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.30
Additional Feature POLARIZED
Voltage - Rated 600V
Number of Rows 2
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Positions 14
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series Mini-Fit BMI 42385
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 5 Weeks
