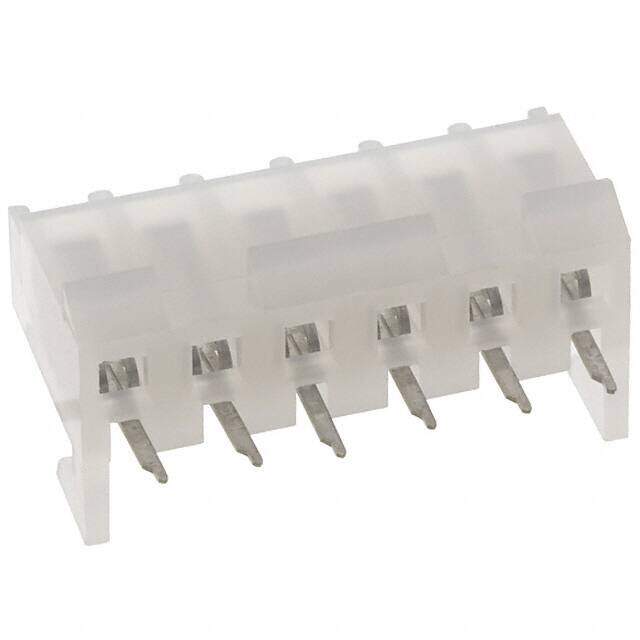

0009623062
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole KK? Tray
PDF
/
Inventory: 3771
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~80°C
Packaging Tray
Series KK 2145
Feature Board Hooks
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 6
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 4A
Insulation Height 0.449 11.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color White
Contact Length - Post 0.160 4.06mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
