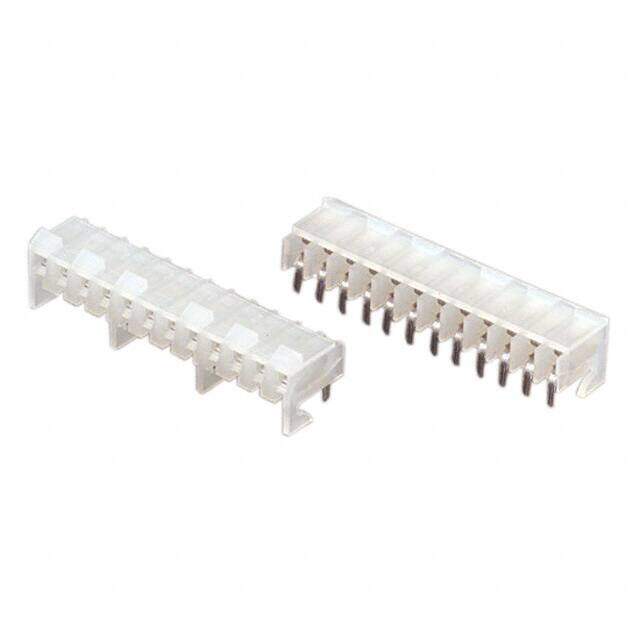

0009523121 image
Favorite
0009523121 image
Favorite

0009523121

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 12P 0.156 TIN EDGE MNT
PDF
/
Inventory: 1925
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Board Edge, Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon

Technical

Operating Temperature -40°C~80°C
Packaging Tray
Series KK 2145
Feature Board Hooks
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Female Socket
Current Rating (Amps) 4.5A
Orientation Right Angle
Insulation Height 0.308 7.82mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Contact Length - Post 0.145 3.68mm
Housing Color White

Dimensions

Height 6.35mm
Length 47.5mm
Width 11.4mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Lead Free Lead Free
