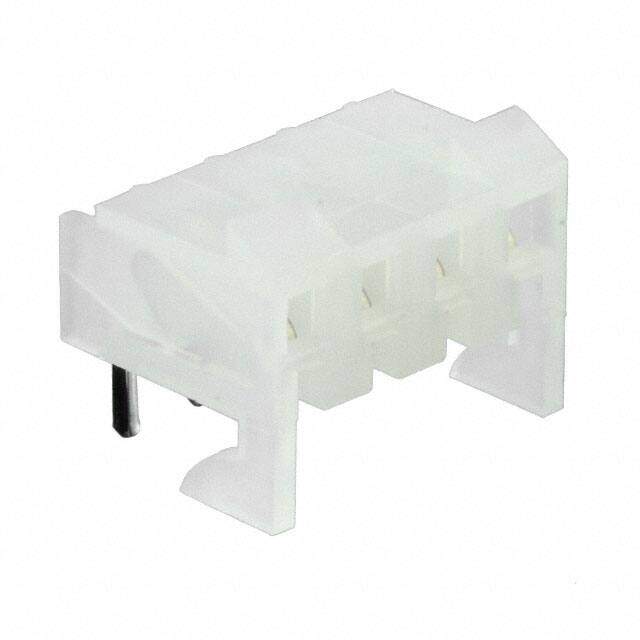

0009523045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4P 0.156 TIN EDGE MNT
PDF
/
Inventory: 5873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Finish - Post Tin
Contact Length - Post 0.145 3.68mm
Insulation Color White
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.308 7.82mm
Current Rating (Amps) 4.5A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600V
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Hooks
Series KK 2145
Packaging Tray
Operating Temperature -40°C~80°C
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Board Edge, Through Hole, Right Angle
Contact Material Brass
