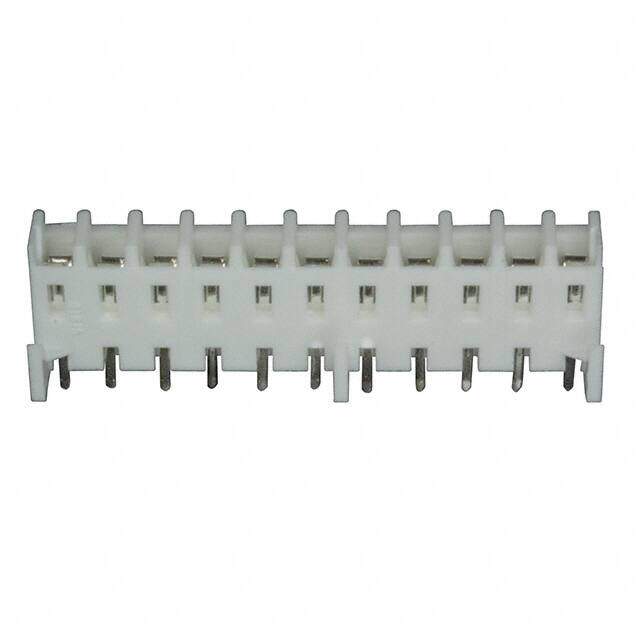

0009484119
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 11POS 0.156 TIN PCB
PDF
/
Inventory: 4956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series KK 41815
Feature Board Hooks
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 11
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Female Socket
Current Rating (Amps) 4.5A
Insulation Height 0.449 11.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Natural
Contact Length - Post 0.125 3.18mm
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
