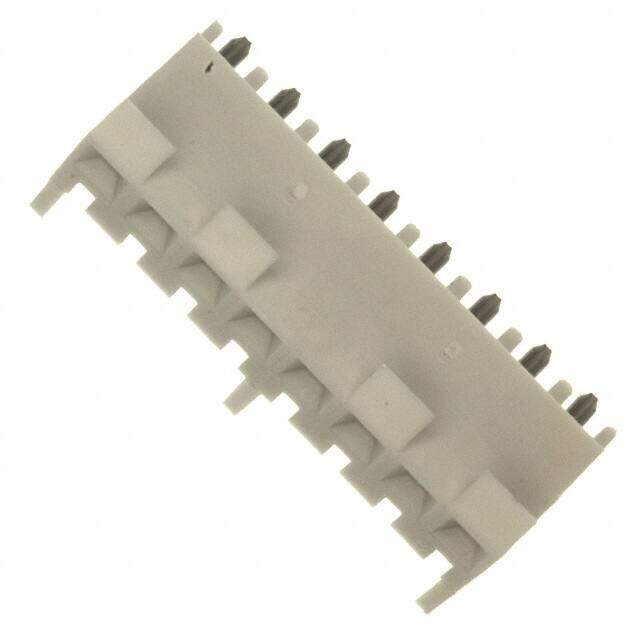

0009483086
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 8POS .156 VERT PCB
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.17008
≥100 USD $1.726454
≥500 USD $1.430528
≥1000 USD $1.282538
Inventory: 1357
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -40°C~80°C
Packaging Tray
Series KK 41815
Feature Board Hooks
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 8
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 4.5A
Insulation Height 0.449 11.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Natural
Contact Length - Post 0.120 3.05mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
