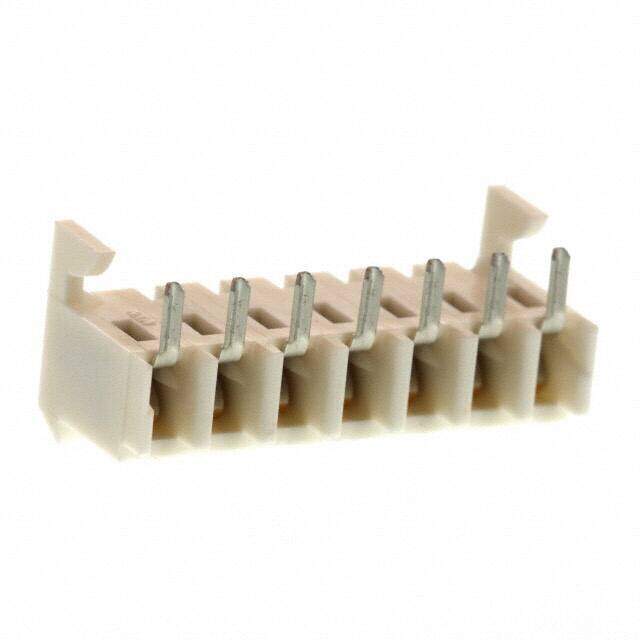

0009483075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 7P 0.156 GOLD EDGE MNT
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.68696
≥100 USD $1.3937
≥500 USD $1.063612
≥1000 USD $0.975586
Inventory: 4943
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Board Edge, Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester
Housing Material Polyester
Technical
Operating Temperature -40°C~80°C
Packaging Tray
Series KK 41815
Feature Board Hooks
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 7
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color White
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Female
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 4.5A
Pitch 3.96mm
Orientation Right Angle
Depth 11.4mm
Insulation Height 0.308 7.82mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.156 3.96mm
Insulation Color Natural
Contact Length - Post 0.145 3.68mm
Number of Contacts 7
Contact Finish - Post Tin
Housing Color White
Contact Resistance 6mOhm
Number of Circuits 7
Dimensions
Length 27.64mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
