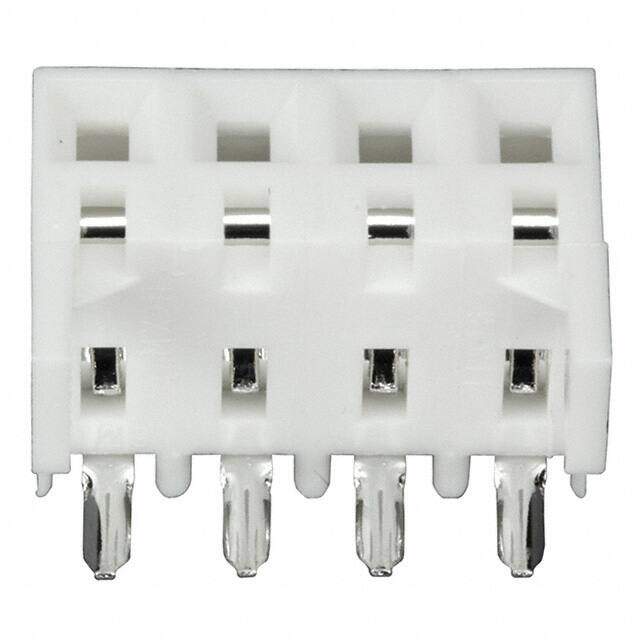

0009481044
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4P 0.156 TIN EDGE MNT
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.63008
≥100 USD $0.524814
≥500 USD $0.461991
Inventory: 47247
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Contact Length - Post 0.145 3.68mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.308 7.82mm
Terminal Pitch 3.96mm
Current Rating (Amps) 5A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600V
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Hooks
JESD-609 Code e3
Series KK 41815
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyester
Contact Shape Square
Mounting Type Board Edge, Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 16 Weeks
