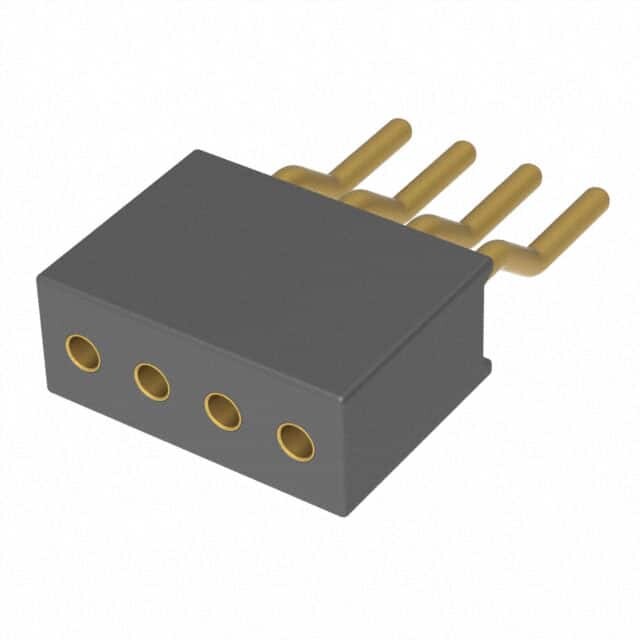

851-11-004-40-001000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.05 GOLD SMD R/A
PDF
/
Inventory: 8297
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mounting Type Surface Mount, Right Angle
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 851
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.087 2.20mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
