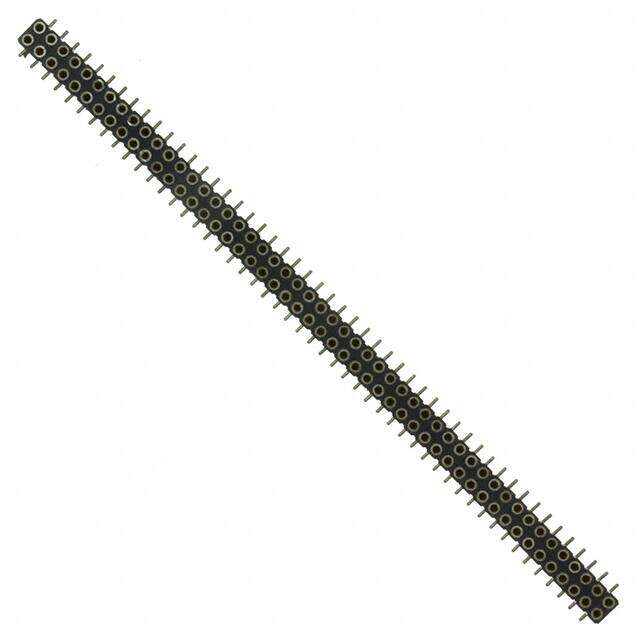

833-93-100-30-001000
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 100POS 0.079 GOLD SMD
PDF
/
Inventory: 9074
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Housing Material Nylon
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2007
Series 833
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 100
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 100
Orientation Straight
Depth 4.19mm
Insulation Height 0.228 5.80mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Row Spacing - Mating 0.079 (2.00mm)
Lead Pitch 2mm
Contact Finish - Post Tin-Lead
Housing Color Black
Contact Resistance 10mOhm
Max Voltage Rating (AC) 100V
Max Current Rating 3A
Dimensions
Length 100mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
