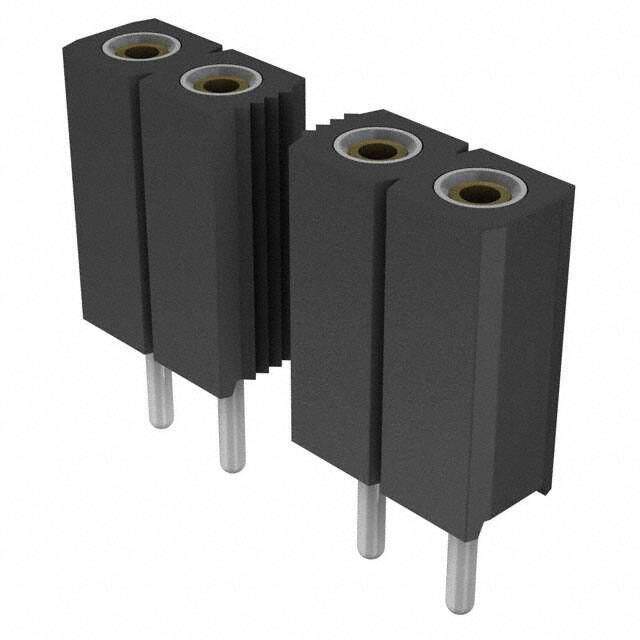

801-93-049-10-001000
RoHS
/
Package SIP
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $8.62
Unit Price: USD $8.6152
≥1 USD $8.6152
≥10 USD $7.7528
≥100 USD $6.928856
≥500 USD $5.805237
≥1000 USD $5.131078
Inventory: 47
Minimum: 1
-
+
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Package / Case SIP
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series 801
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 49
Number of Rows 1
HTS Code 8536.90.40.00
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.5A
Terminal Pitch 2.54mm
Insulation Height 0.276 7.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Contact Finish - Post Tin-Lead
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
