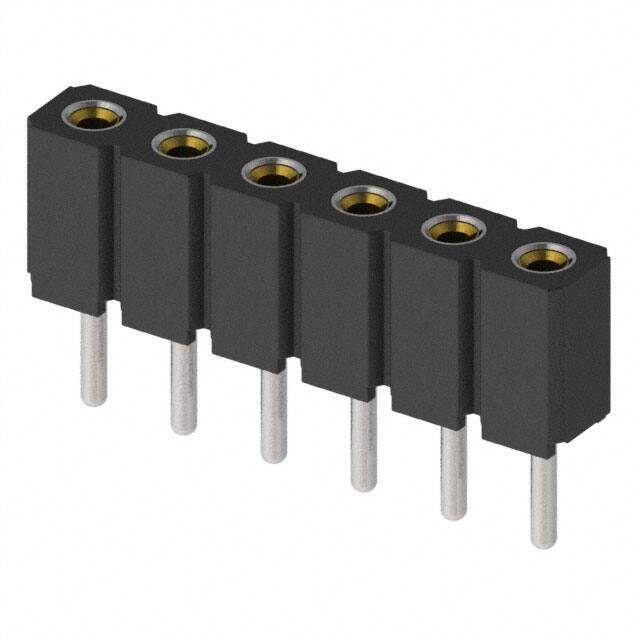

801-47-006-10-012000
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 6POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $0.960749
≥100 USD $0.899501
≥500 USD $0.735918
≥1000 USD $0.654157
≥3000 USD $0.572387
Inventory: 794
Minimum: 1
-
+
Technical Details
Technical
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e4
Series 801
Published 2017
Packaging Bulk
Operating Temperature -55°C~125°C
Contact Finish - Post Tin
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.165 4.20mm
Current Rating (Amps) 4.5A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Mounting Type Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating Flash
