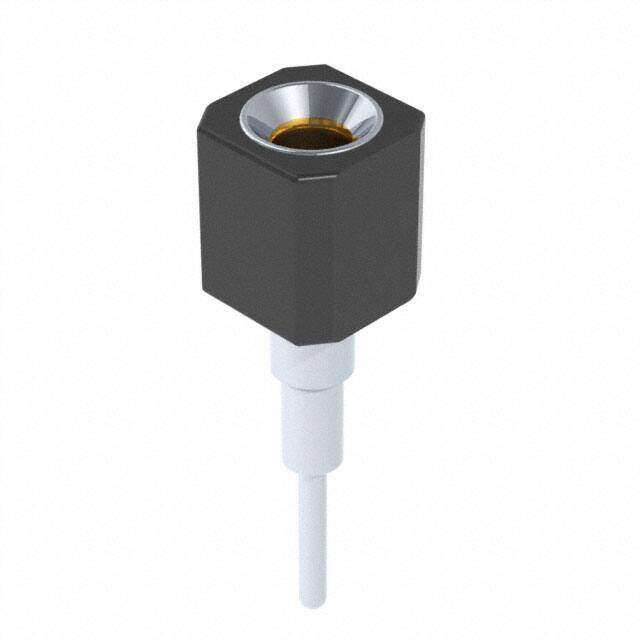

316-47-101-41-006000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 1POS GOLD PCB
PDF
/
Inventory: 9682
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating Flash
Technical
Contact Finish - Post Tin
Contact Length - Post 0.118 3.00mm
Insulation Color Black
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.236 6.00mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Positions 1
Connector Type Elevated Socket
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 316
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Mounting Type Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
