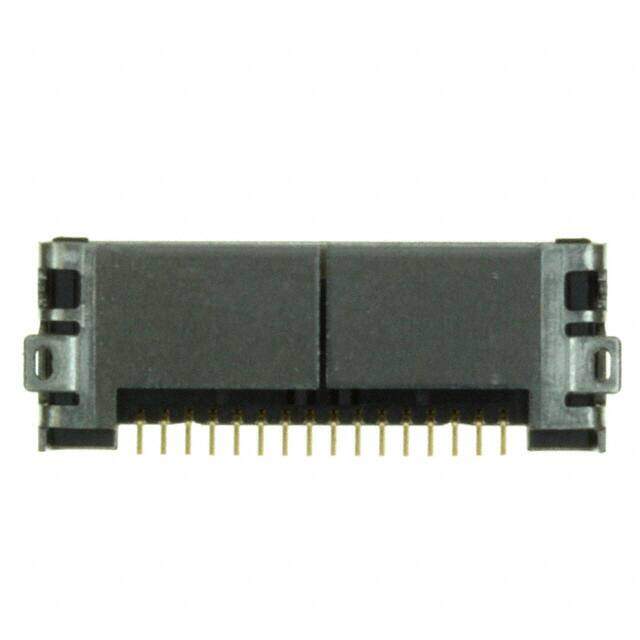

RL01S-R16P-SE
RoHS
/
Package SMD/SMT
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 16P 0.031 GOLD SMD R/A
PDF
/
Inventory: 945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SMD/SMT
Insulation Material Polyphenylene Sulfide (PPS)
Technical
Packaging Tray
Published 2004
Series RL01/RL01S/RL02S
Feature Grounding Pins, Shielded, Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 16
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Center Strip Contact
Pitch 787.4μm
Insulation Height 0.114 2.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
