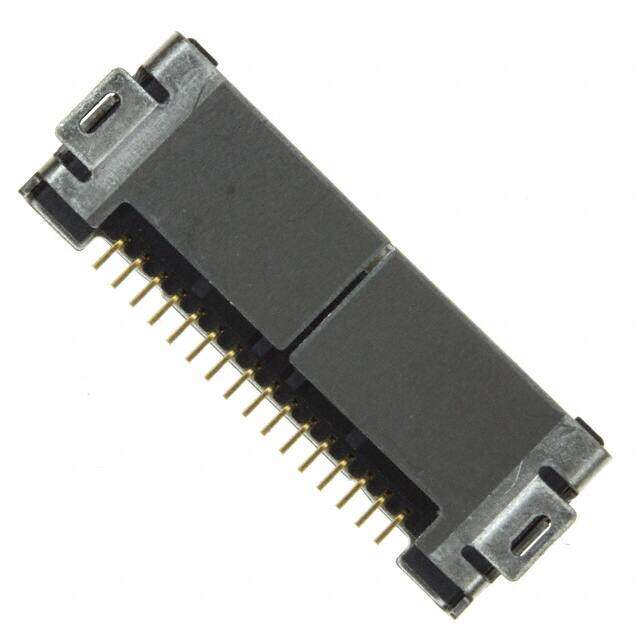

RL01S-R16P-HE
RoHS
/
Package SMD/SMT
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 16P 0.031 GOLD SMD R/A
PDF
/
Inventory: 8777
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Insulation Height 0.114 2.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Contact Finish - Post Tin
Pitch 787.4μm
Contact Type Center Strip Contact
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Number of Positions 16
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Shielded, Solder Retention
Series RL01/RL01S/RL02S
Published 2004
Packaging Tray
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Insulation Material Polyphenylene Sulfide (PPS)
Package / Case SMD/SMT
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
